Description

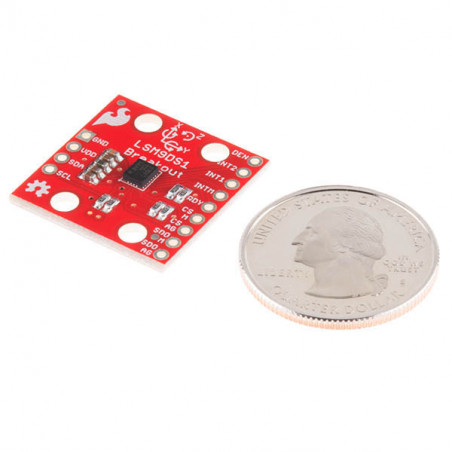

The LSM9DS1 is a versatile, motion-sensing system-in-a-chip. It houses a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer ? nine degrees of freedom (9DOF) in a single IC! The LSM9DS1 is equipped with a digital interface, but even that is flexible: it supports both I2C and SPI, so you?ll be hard-pressed to find a microcontroller it doesn?t work with. This IMU-in-a-chip is so cool we put it on the quarter-sized breakout board you are currently viewing!

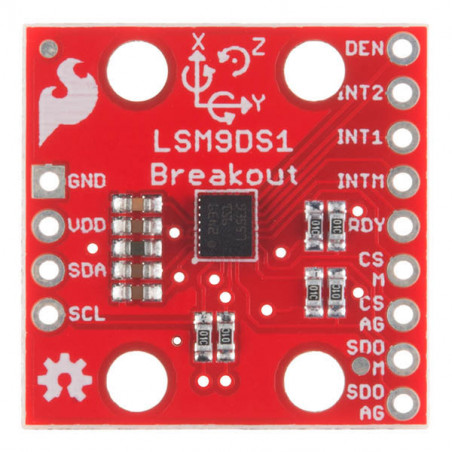

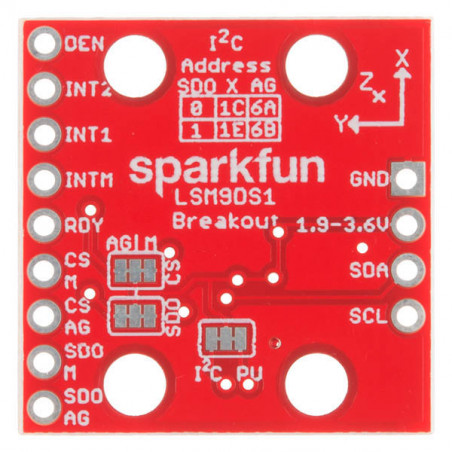

The LSM9DS1 is one of only a handful of IC?s that can measure three key properties of movement ? angular velocity, acceleration, and heading ? in a single IC. By measuring these three properties, you can gain a great deal of knowledge about an object?s movement and orientation. The LSM9DS1 measures each of these movement properties in three dimensions. That means it produces nine pieces of data: acceleration in x/y/z, angular rotation in x/y/z, and magnetic force in x/y/z. The LSM9DS1 Breakout has labels indicating the accelerometer and gyroscope axis orientations, which share a right-hand rule relationship with each other.
Each sensor in the LSM9DS1 supports a wide spectrum of ranges: the accelerometer?s scale can be set to ± 2, 4, 8, or 16 g, the gyroscope supports ± 245, 500, and 2000 °/s, and the magnetometer has full-scale ranges of ± 4, 8, 12, or 16 gauss.
Get Started with the LSM9DS1 Breakout Guide Read moreFeatures: 3 acceleration channels, 3 angular rate channels, 3 magnetic field channels ±2/±4/±8/±16 g linear acceleration full scale ±4/±8/±12/±16 gauss magnetic full scale ±245/±500/±2000 dps angular rate full scale SPI / I2C serial interfaces Operating Voltage: 3.3V
Questions(FAQs)
The LSM9DS1 is one of only a handful of IC?s that can measure three key properties of movement ? angular velocity, acceleration, and heading ? in a single IC. By measuring these three properties, you can gain a great deal of knowledge about an object?s movement and orientation. The LSM9DS1 measures each of these movement properties in three dimensions. That means it produces nine pieces of data: acceleration in x/y/z, angular rotation in x/y/z, and magnetic force in x/y/z. The LSM9DS1 Breakout has labels indicating the accelerometer and gyroscope axis orientations, which share a right-hand rule relationship with each other.
Each sensor in the LSM9DS1 supports a wide spectrum of ranges: the accelerometer?s scale can be set to ± 2, 4, 8, or 16 g, the gyroscope supports ± 245, 500, and 2000 °/s, and the magnetometer has full-scale ranges of ± 4, 8, 12, or 16 gauss.
Get Started with the LSM9DS1 Breakout Guide
