Description

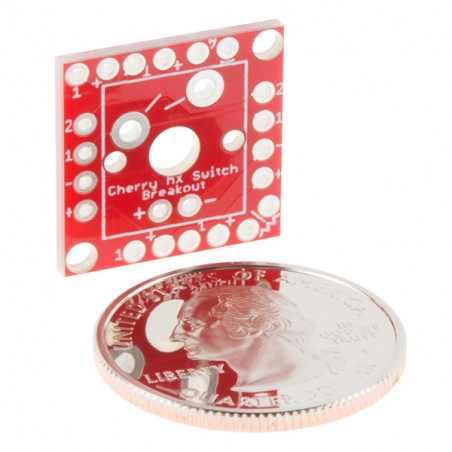

Cherry MX Keyswitches are top-of-the-line mechanical keyboard switches. They?re satisfyingly ?clicky?, reliable up to tens-of-millions of key presses, and a standard in gaming and programming keyboards across the globe. With the SparkFun Cherry MX Switch Breakout we have made the switches more easily adaptable to breadboard or perfboard-based projects. The Cherry MX Switch Breakout is a perfect prototyping tool for projects ranging from a single-key user-input to fully-custom 101-key keyboards.

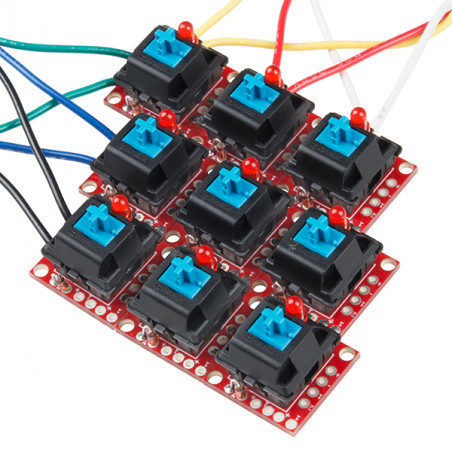

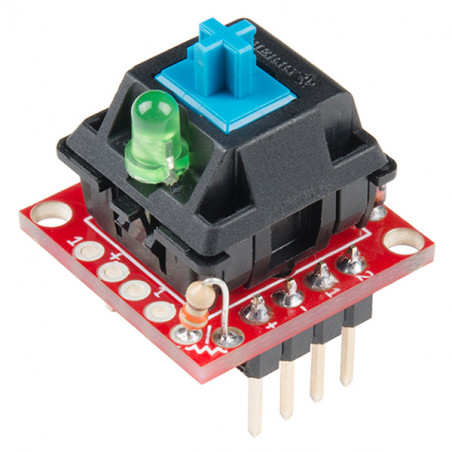

In addition to breaking out the switch contacts to breadboard-compatible headers, the Cherry MX Switch Breakout also provides access to an optional switch-mounted LED. Plus, the pin break-outs are designed with keyboard matrix-ing in mind, so you can interconnect as many boards as you?d like into a row-column configuration, keeping the I/O-pin requirements as low as possible.
Note: If you are looking for a Cherry MX Switch to use with this breakout, we’ve got you covered! CLICK HERE!
Get Started with the Cherry MX Switch Guide Read moreFeatures: Support for 3mm LED Footprint for LED current-limiting resistor Footprint for switch-isolating diode Chain-able in row/column matrices Designed to match standard key spacing and keyboard row offsets
Questions(FAQs)
In addition to breaking out the switch contacts to breadboard-compatible headers, the Cherry MX Switch Breakout also provides access to an optional switch-mounted LED. Plus, the pin break-outs are designed with keyboard matrix-ing in mind, so you can interconnect as many boards as you?d like into a row-column configuration, keeping the I/O-pin requirements as low as possible.
Note: If you are looking for a Cherry MX Switch to use with this breakout, we’ve got you covered! CLICK HERE!
Get Started with the Cherry MX Switch Guide
