Description
- 805 series 3.96mm pitch card edge connectors can be used with matching printed PCB boards or other circuit boards, the data can be easily read. Widely used in computers serving as expansion slots for peripheral cards, such as AGP cards, PCI, PCI Express, game consoles, etc.

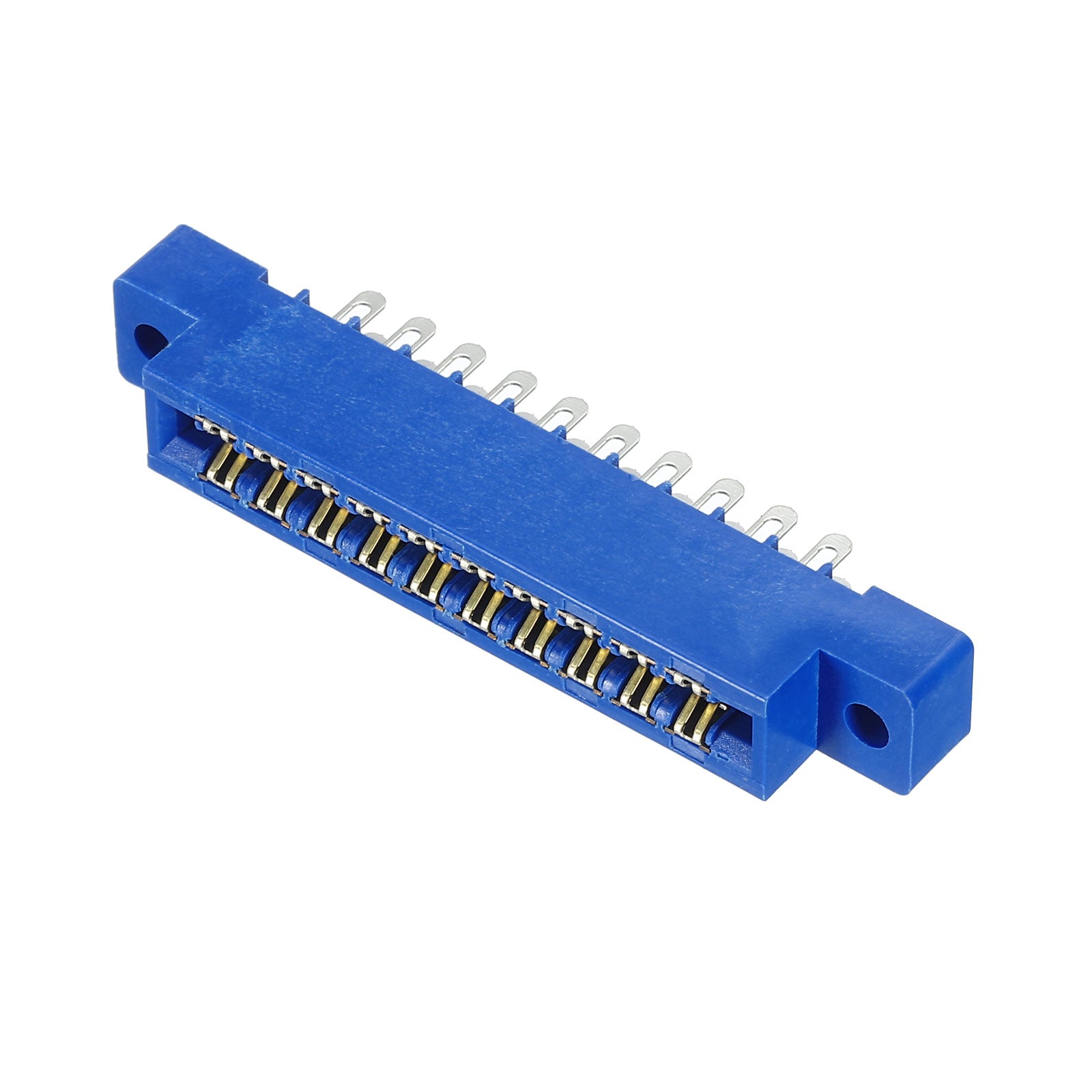

- Package Content: 1pcs x Edge Card Connector; Pin: 20P; Pitch: 3.96mm; Mounting Hole Distance: 54mm/2.13 inch; Total Size(L*W*H): 60×8.7×16.3mm/2.36×0.34×0.64 inch

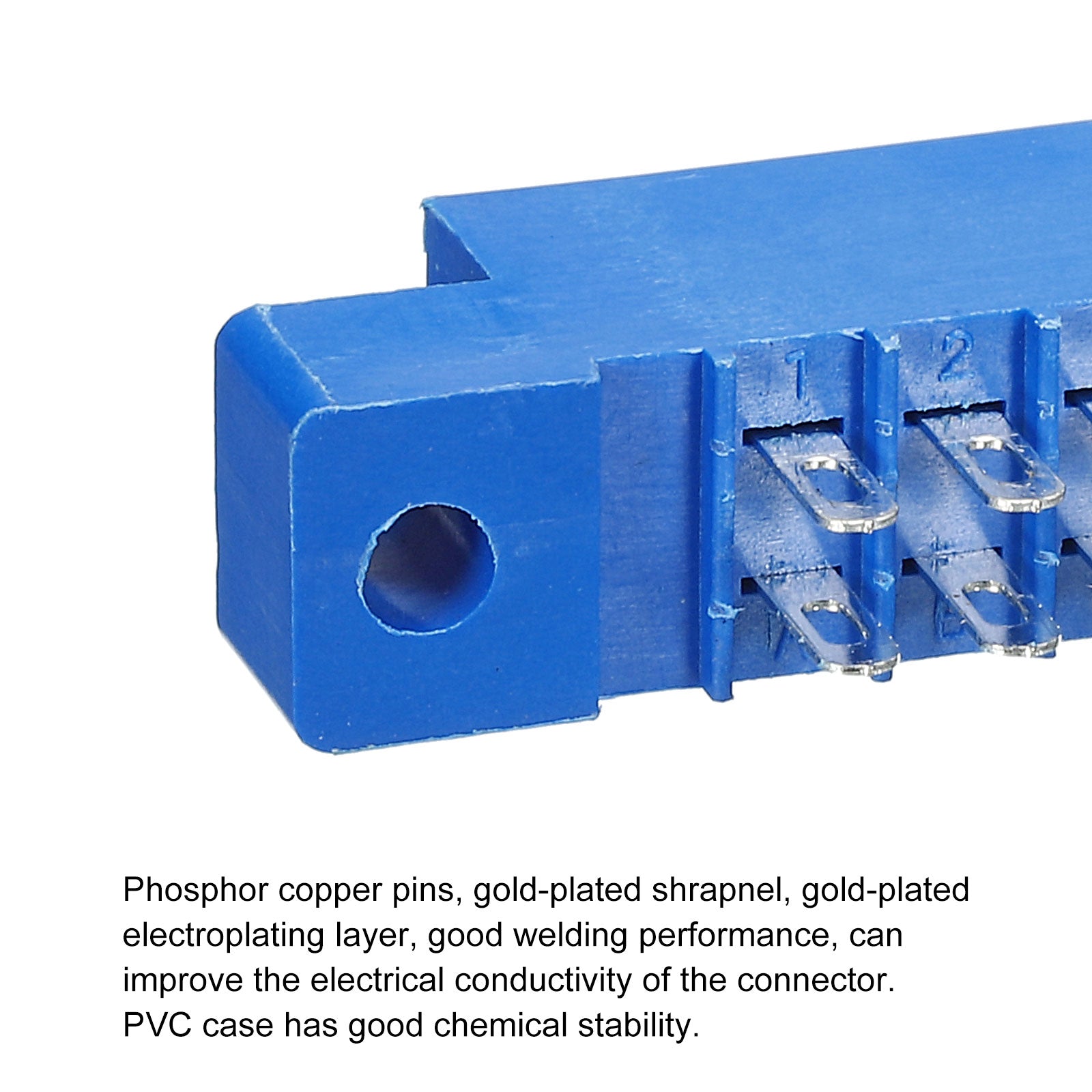

- Phosphor copper pins, gold-plated shrapnel, gold-plated electroplating layer, good welding performance, can improve the electrical conductivity of the connector, improve the working stability and reliability of the internal devices. PVC case has good chemical stability, which can improve mechanical strength and thermal stability.
- Edge connector pins are nice tight fit, snug on game pcb board. Fits an edge connector card, easy to insert board into socket, with mounting holes, solder type design.
- Tips: Please confirm the connector specifications before purchasing.
What is this?805 series 3.96mm pitch card edge connectors can be used with matching printed PCB boards or other circuit boards, the data can be easily read. Widely used in computers serving as expansion slots for peripheral cards, such as AGP cards, PCI, PCI Express, game consoles, etc.
What will I get?
Package Content: 1pcs x Edge Card Connector; Pin: 20P; Pitch: 3.96mm; Mounting Hole Distance: 54mm/2.13 inch; Total Size(L*W*H): 60×8.7×16.3mm/2.36×0.34×0.64 inch
Are there any advantages of the product?Phosphor copper pins, gold-plated shrapnel, gold-plated electroplating layer, good welding performance, can improve the electrical conductivity of the connector, improve the working stability and reliability of the internal devices. PVC case has good chemical stability, which can improve mechanical strength and thermal stability.
How to use it?Edge connector pins are nice tight fit, snug on game pcb board. Fits an edge connector card, easy to insert board into socket, with mounting holes, solder type design.
What should I notice?Tips: Please confirm the connector specifications before purchasing.
What will I get?
Package Content: 1pcs x Edge Card Connector; Pin: 20P; Pitch: 3.96mm; Mounting Hole Distance: 54mm/2.13 inch; Total Size(L*W*H): 60×8.7×16.3mm/2.36×0.34×0.64 inch
Are there any advantages of the product?Phosphor copper pins, gold-plated shrapnel, gold-plated electroplating layer, good welding performance, can improve the electrical conductivity of the connector, improve the working stability and reliability of the internal devices. PVC case has good chemical stability, which can improve mechanical strength and thermal stability.
How to use it?Edge connector pins are nice tight fit, snug on game pcb board. Fits an edge connector card, easy to insert board into socket, with mounting holes, solder type design.
What should I notice?Tips: Please confirm the connector specifications before purchasing.
